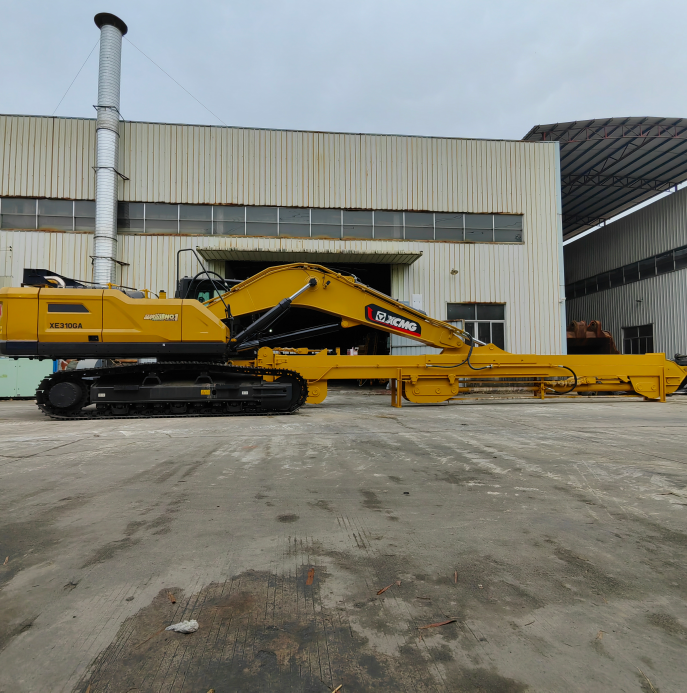

32M Excavator telescopic dipper arm for XE380 can custom different
size
2024
Zhonghe Machinery Catalogue 3M.pdf
- Utilizes BS900 material for lighter weight, reducing main load,
enhancing fuel efficiency, and enabling faster operation.
- Offers optional auxiliary rope and bucket design, allowing
flexibility to switch between grab and bucket functions.
- Features increased pulley and thick steel wire rope design for
higher strength capacity, longer accessory lifespan, and overall
stability.
- Utilizes high-quality steel wire rope and imported Japanese
bearings for superior performance and durability.
- Unique design enables easy maintenance without the need to remove
the arm, facilitating quick replacement of wire rope and
high-pressure hose.
II. Advantages of Excavator Telescopic Arm
Adavantage 1: The external hose pulley separates the hose from the main rope,
avoids the friction between the main rope and the hose, reduces
failures, and makes maintenance more convenient
Adavantage 2:Adopt 30mm main rope.Adopt 26mm auxiliary rope.
The upgraded auxiliary rope design makes the pipeline smoother
while stretching
Adavantage 3: The external hose pulley separates the hose from the main rope,
avoids the friction between the main rope and the hose, reduces
failures, and makes maintenance more convenient.
Adavantage 4: Oil filling hole at the second arm front end (to the top slider).Oil filling hole position on both sides of the third arm front
end(to the top slider)

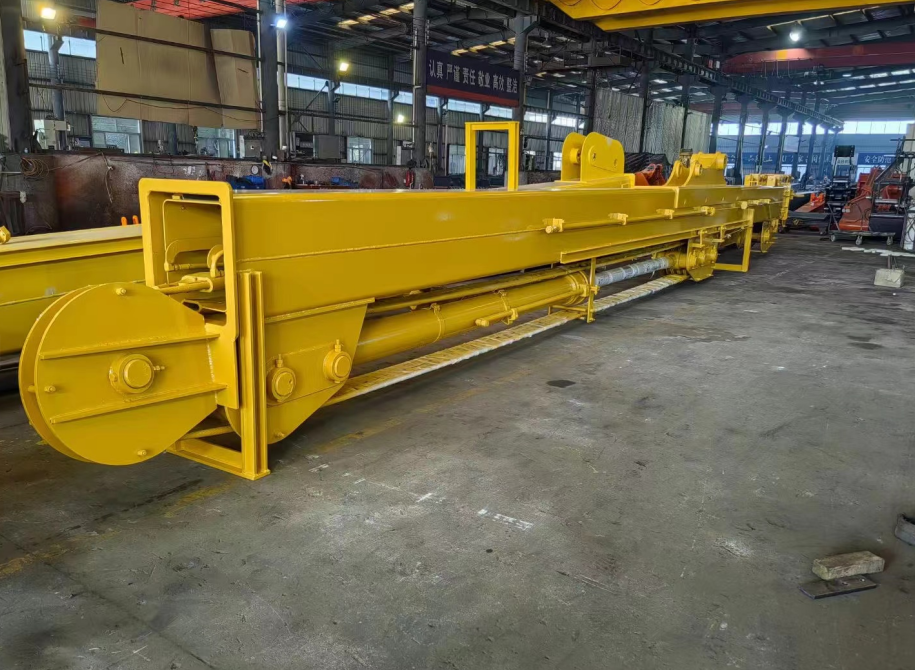

Three-section Telescopic Boom Arm
Main Material we choose is Q690/ HG785
Lighter and stronger
The main material of arm tube we use is Q690D/HG785
Enhance longer life-span, lighter and stronger
The other place we use Q355B.
Telescopic Boom Arm
It is nylon material , it can reduce grinding
Our sliding wheel is POM Material , with high mechanical strength
and rigidity.
Two sliding wheels on the top , the others two on the bottom , this
part separate the high
pressure hose and the steel rope , to reduce grinding each other
,less grinding can prolong the service life . You can see the top
is for the steel rope , and the bottom is for the high pressure
hose , on the both side . Besides , here also have a adjustable
holder to tension hose if need.
1. 14000㎡ factory building
We have more than 14,000 square meters of steel structure standard
workshops and a large number of high-precision processing
equipment.
2. High-tech R&D team
We use precision drafting software to achieve maximum work envelope
while operating safely.
3.Experienced workers
It has more than 60 skilled employees, including 30 welders with
more than 5 years of welding experience.
4. Customization
(1) Match various brands of excavators.
(2) The color, length and material can be made according to your
requirements.
(3) Additional piping can be added to accommodate some additional
applications.
5. Prompt delivery
(1) Our delivery time is 7-15 days.
(2) Annual output of 600 excavator arms of various types.
6. 100% service
(1) 24-hour online support.
(2) Make an appointment for video technical support. (Our engineers
have focused on excavator arms and attachments for more than ten
years)
Previous Exhibitions
Our products have CE certificates, you can completely trust the
quality of our products.
Q1.How much is the payment?
A:Bank transfer and PayPal are both available, if you prefer other
methods, they can also be negotiated.
Q2.Will it fit my excavator?
A.certainly. We will make the connection the same size as your
machine so it will fit perfectly.
Q3. How long does delivery take?
A.It depends on the destination port. Usually production and
delivery takes 7 to 30 days.
Q4. What are the payment terms?
A: Western Union, T/T, Trade Assurance are acceptable.
Q4. Where is your factory located?
A: No. 9, Huancui West Road, Cuishanhu New District, Kaiping City,
Guangdong Province, China
Any details, welcome to contact me.
