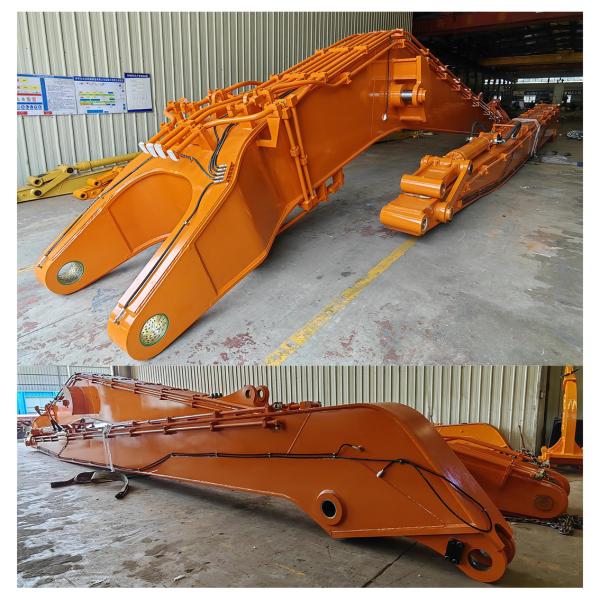

heavy excavation equipment long reach boom excavator excavator
extended boom long arm for Sany500
2024
Zhonghe Machinery Catalogue 3M.pdf
Working Diagram of Long Reach Boom
A.Maximum lifting height
B. Maximum unloading height
C. Maximum digging depth
D. Maximum digging surface radius
E. Maximum excavation depth radius
F. Maximum elongation length
G. Maximum excavation turning radius

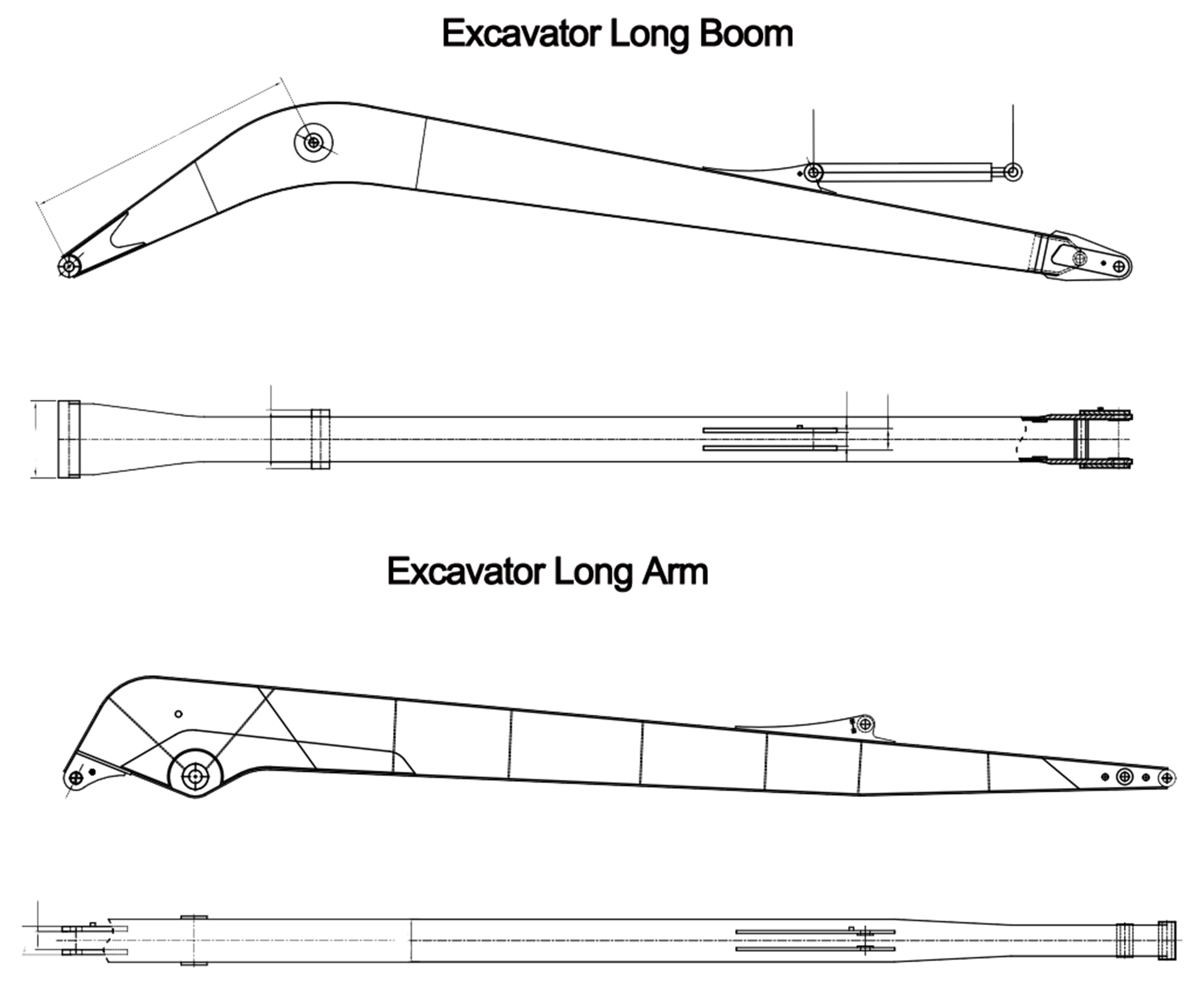

Excavator long arm
Advantages of excavator long arm:
Increased Reach: A long arm allows the excavator to access areas
that would otherwise be out of reach with a standard arm. This can
be particularly useful for tasks like demolition, loading trucks,
or working on sites with limited access.
Enhanced Versatility: The extended reach enables the excavator to
take on a wider range of projects and tasks, making it a more
versatile and adaptable piece of equipment.
Improved Efficiency: By being able to access more areas without
having to constantly reposition the machine, a long-armed excavator
can often complete jobs more quickly and efficiently.
Safety Benefits: The increased reach can allow the operator to
maintain a safe distance from hazardous areas or situations,
reducing the risk of accidents or injuries.
Reduced Ground Disturbance: With the ability to work from a
distance, a long-armed excavator can minimize the amount of ground
disturbance or compaction, which can be important in sensitive
environments.
Reduced Transport Requirements: In some cases, the extended reach
of a long-armed excavator may eliminate the need for additional
support equipment, such as cranes or material handlers, reducing
the overall transport and logistical requirements for a project.

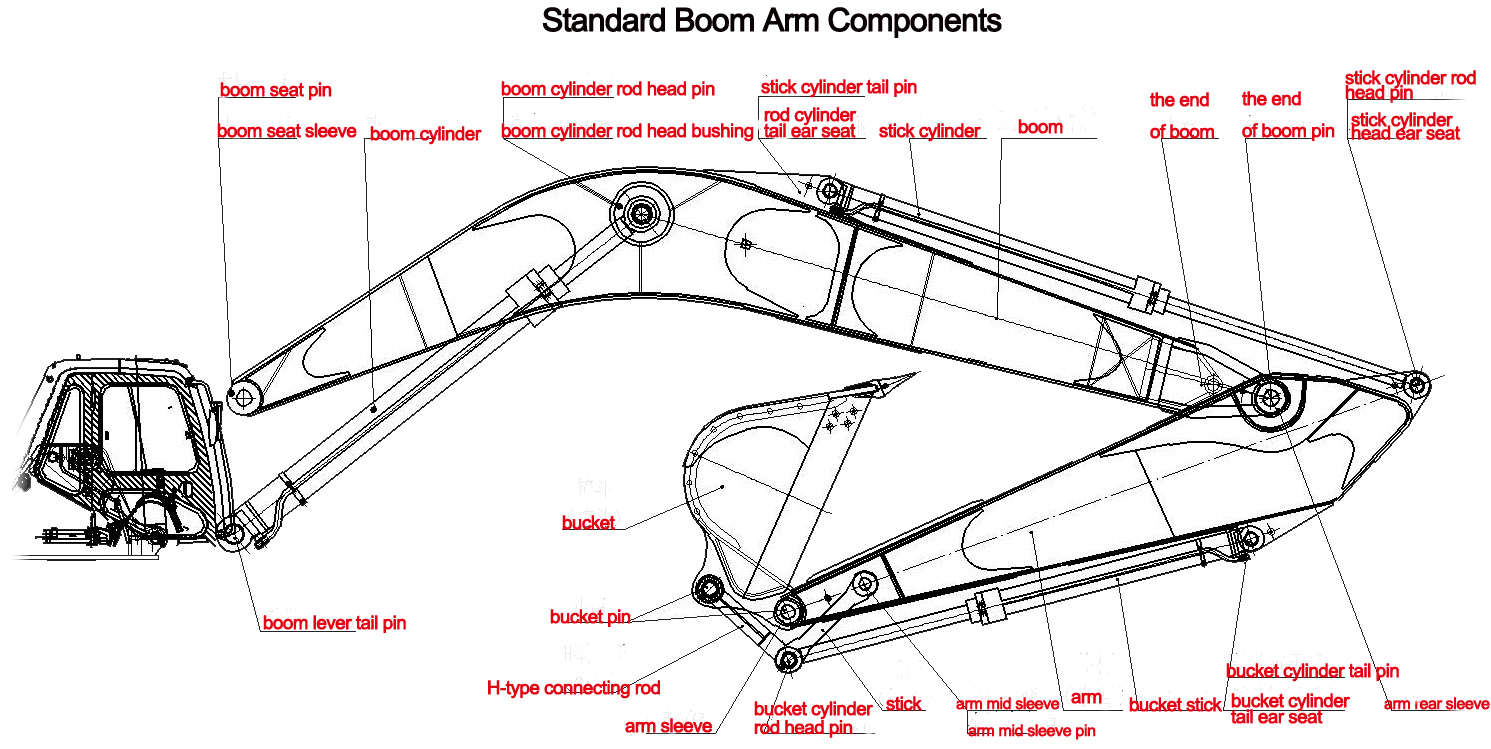

Standard configuration of long arm:
1. One set of long arms
2. One bucket
3. Six pins
4. One bucket cylinder
5. One set of connecting rods
6. Three lubricating oil pipes
7. Four high-pressure pipes
ZHONGHE's Triple Quality Control System:
Technical Design Drawing Review Mechanism:
This mechanism conducts a comprehensive review of the technical
design drawings to ensure the design requirements are met.
Semi-Finished Product Review Mechanism:
In the production process, each operation includes a detection and
testing procedure for the previous process, ensuring quality
standards are upheld.
Finished Product Testing:
Before finishing the product, an overall inspection is carried out
to check if the design dimensions, welding dimensions, and
installation dimensions all meet the standard requirements.
Our Team Advantages
Our products have CE certificates, you can completely trust the
quality of our products.
Shipping and packaging
Our products have been sold to more than 60 countries. The modes of
transportation include sea, land and air. The packaging is wooden
box packaging or stretch film packaging. The goods will be packed
before shipment and then loaded into containers to ensure the
safety of the goods.
Our products have been sold to more than 60 countries, and our
transportation methods include sea transportation, land
transportation, and air transportation. Our packaging is wooden box
packaging or stretch film packaging. The goods will be packed
before shipment and then loaded into the container to ensure the
safety of the goods.
Q1. What is the payment amount?
A: Both bank transfer and PayPal are available, and it can be
negotiated if you prefer other methods.
Q2. Will it fit my excavator?
A. Of course. We will make the size of the connector the same as
your machine for a perfect match.
Q3. How long does it take for delivery?
A. It depends on the destination port. Usually it takes 7 to 30
days for production and delivery.
Q4. What are the payment terms?
A: Western Union, T/T, Trade Assurance are all available.
Q5. Where is your factory located?
A: No. 9, Huancui West Road, Cuishan Lake New District, Kaiping
City, Guangdong Province, China
Any details, welcome to contact me.
