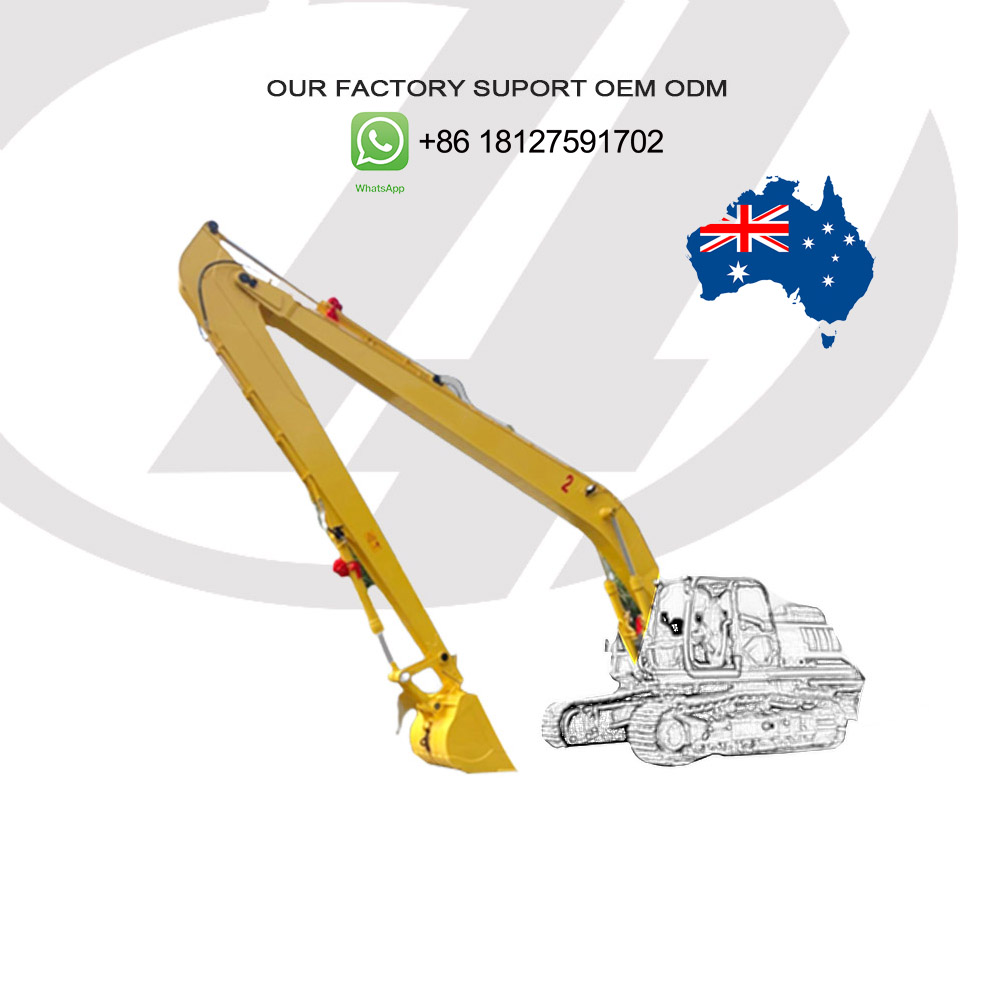

Excavator long arm 12M for CAT312 sale well in Taiwan Market

My name is sophia from Zhonghe Machinery , our factory produce telescopic arm and different types of long arm , please contact me if you need
whatsapp/wechat:+86 18127591702
sophia@excavatorboomarm.com
Line~:supersophia1990
@excavatorrockbuckets.com​

Excavator Long Boom * Two-section Telescopic Arm * Three-section Telescopic Arm * Excavator Sliding arm * Pile Driving Arm * High Reach Demolition Arm *Excavator Tunnel Arm * Heavy Duty Rock Arm * Excavator Tilt Bucket * Excavator Hydraulic Grapple

The Long Reach Excavator has a longer boom and stick to increase its digging capabilities in deep and long-distance applications. Our factory support OEM and ODM , Meet the needs of various working conditions.

if you order our long arm , the configuration will come with
1. the boom ,the arm , the bucket,
2. the bucket cylinder
3. The linkage
4. 6 pc pins
5. 4 pc high preasure hoses
6. and 3pc lubrication tube

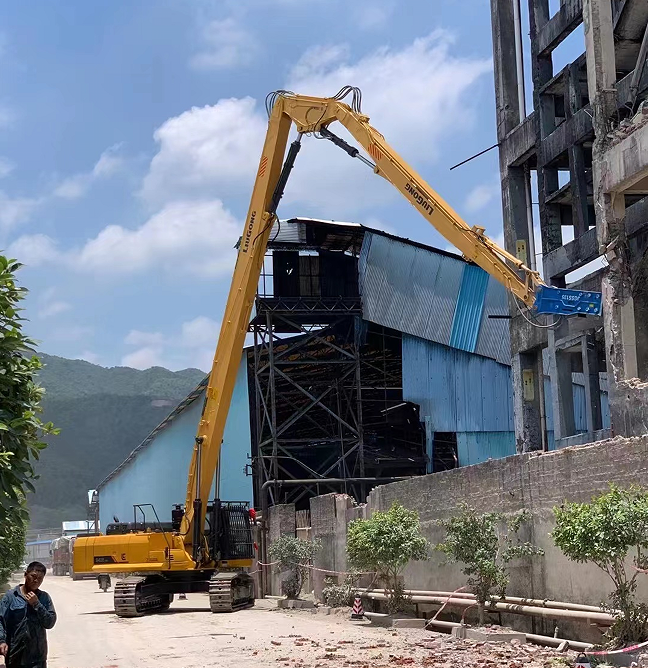

1. Excavator High Reach Demolition Boom Arm

✅Seamless precision steel pipe

✅Centralized lubrication system

✅The boom seat sleeve adopts all in one molding process

✅Hydraulic pipelines section design, convenient for later maintenance

2. Excavator Pile Driving Boom Arm

✅ The angle between boom and horizon can reach 88°

✅The angle between boom and arm can reach 160°

✅Comparing with the same length pile driving arm, ours can pile higher.

3. Excavator Shorten Arm

✅Stop valves prevent oil leakage when replacing breaker by bucket.

✅Multi-layer welding of pipe connectors to reduce the risk of oil leakage

✅Cylinder protective cover is beneficial to preventing the cylinder from being damaged in collision

✅Q355B material, using high-quality accessories, full weld, double plate reinforcement in the stress position, etc.

4. Excavator Sliding Arm

✅Built-in antiwear plastic slider for easy replacement and maintenance

✅The double oil seal design for the telescopic cylinder prolongs its service life

✅The whole plate is cut, not spliced, so as to be more firm and not easy to deform

✅Steel sliders are welded between the skateboards to avoid direct contact wear

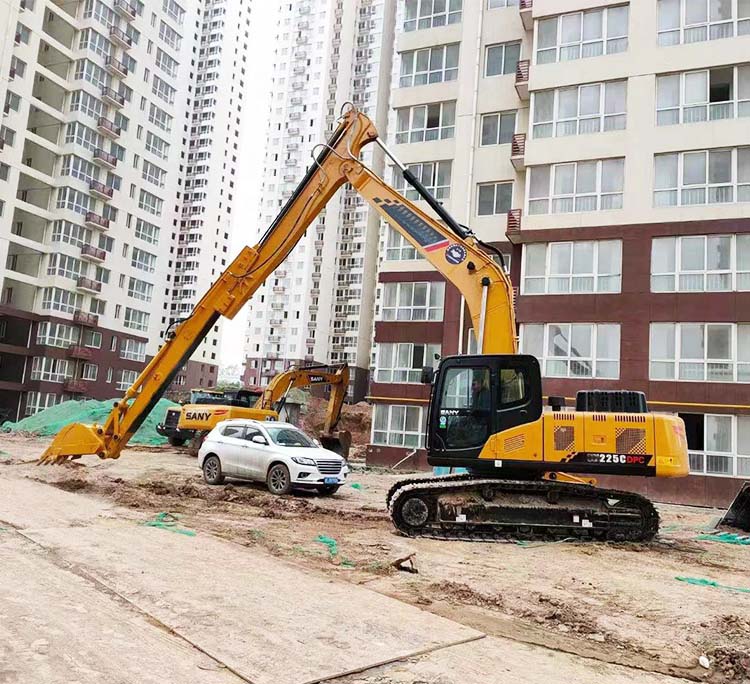

6. EXCAVATOR LONG REACH

✅The pipeline we use is international seamless precision pipeline.

✅The bushing on the boom base we use graphite alloy copper sleeve ,and other place we use steel bushing for easy maintenance

✅Chamfering bevel before welding, our muti-layer welding is full and smooth with many year professional experence .

✅Rivers cleaning dregging project

ZHONGHE triple quality control system
The first system is the technical design drawing review mechanism,
The second system is the semi-finished product review mechanism,
(each process has a detection testing for the previous process)
The third system is the finished product testing.
(Before painting, the overall inspection is carried out to check whether the design size matches the welding size, and whether the installation size meets the design requirement.)

To sum up, every single ZHONGHE product has been passed the above three-stage inspection system to ensure that is qualified before shipping.

Usually use 40GP container to load product !

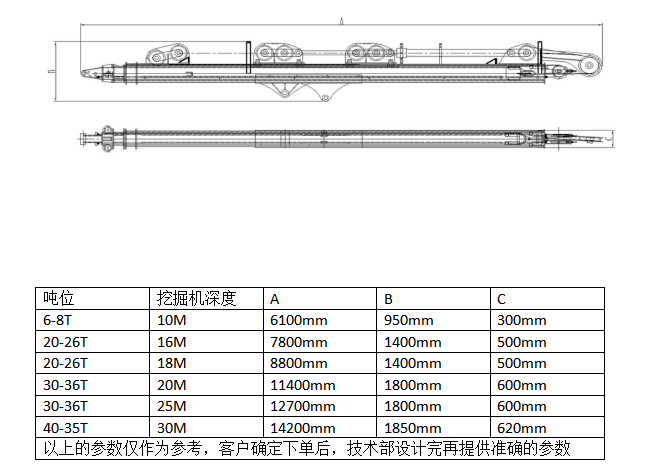

What type of model can directly install a 30 meter telescopic arm
A: In the absence of a nitrogen cylinder, the generally 30-meter telescopic arm can be installed by more than 450 machines, with 2.2 square shell buckets and 1 square grab buckets. If the nitrogen cylinder is added, the machine above 350 (including 350) can also be equipped with 30 meters telescopic arm and 2.2 square shell bucket. Whether it is 350 or 450 machine, the installation of 30 meters of telescopic arm is required to increase the counterweight to stabilize, 350 machine, it is recommended to increase the counterweight of 8 tons, 450 machine is recommended to increase the counterweight of 4 tons.What is a nitrogen cylinder and how does it work

What is a nitrogen cylinder and what is its working principle?
A: The nitrogen cylinder needs to be filled with nitrogen, why choose nitrogen? The first nitrogen is an inert gas, inactive; Second nitrogen, why can you install a longer telescopic arm if you install a nitrogen cylinder? The telescopic arm is relatively heavy, and the downward pressure of the telescopic arm depends on gravity, and the power support of the excavator is not required. The problem occurs when lifting the big arm, the weight of the telescopic arm during load far exceeds the weight of the original arm load, exceeds the ultimate load capacity of the big arm cylinder, and can not lift the big arm, or the phenomenon of slow lifting. In the face of this phenomenon, there are two solutions, the first is to increase the oil cylinder, the second method is to install a nitrogen cylinder. Enlarging the cylinder will not only cause the cylinder to meet the big arm, but also prone to a series of failure problems of high engine water temperature.
The second method is to install a nitrogen cylinder, the downpressure of the telescopic arm is enough, the lifting capacity is not enough, the principle of the nitrogen cylinder is to always give the big arm an upward lifting force, which increases the lifting force, while reducing the load of the engine, and fuel saving

Contact sophia to inquiry details !

Esteblished in 2018, Kaiping Zhonghe Machinery Manufacturing Co., Ltd.，manufacturing and trading combo, specializes in customizing different kinds of excavator boom arm and attachments,Our main product as below:

-Excavator Long Boom
-Excavator Telescopic Arm
-Excavator Sliding arm
-Pile Driving Arm
-High Reach Demolition
-Excavator Tunnel Arm
-Heavy Duty Rock Arm
-Excavator Tilt Bucket
-Excavator Hydraulic Grapple

, which is sell well in more than 40 countries and areas.

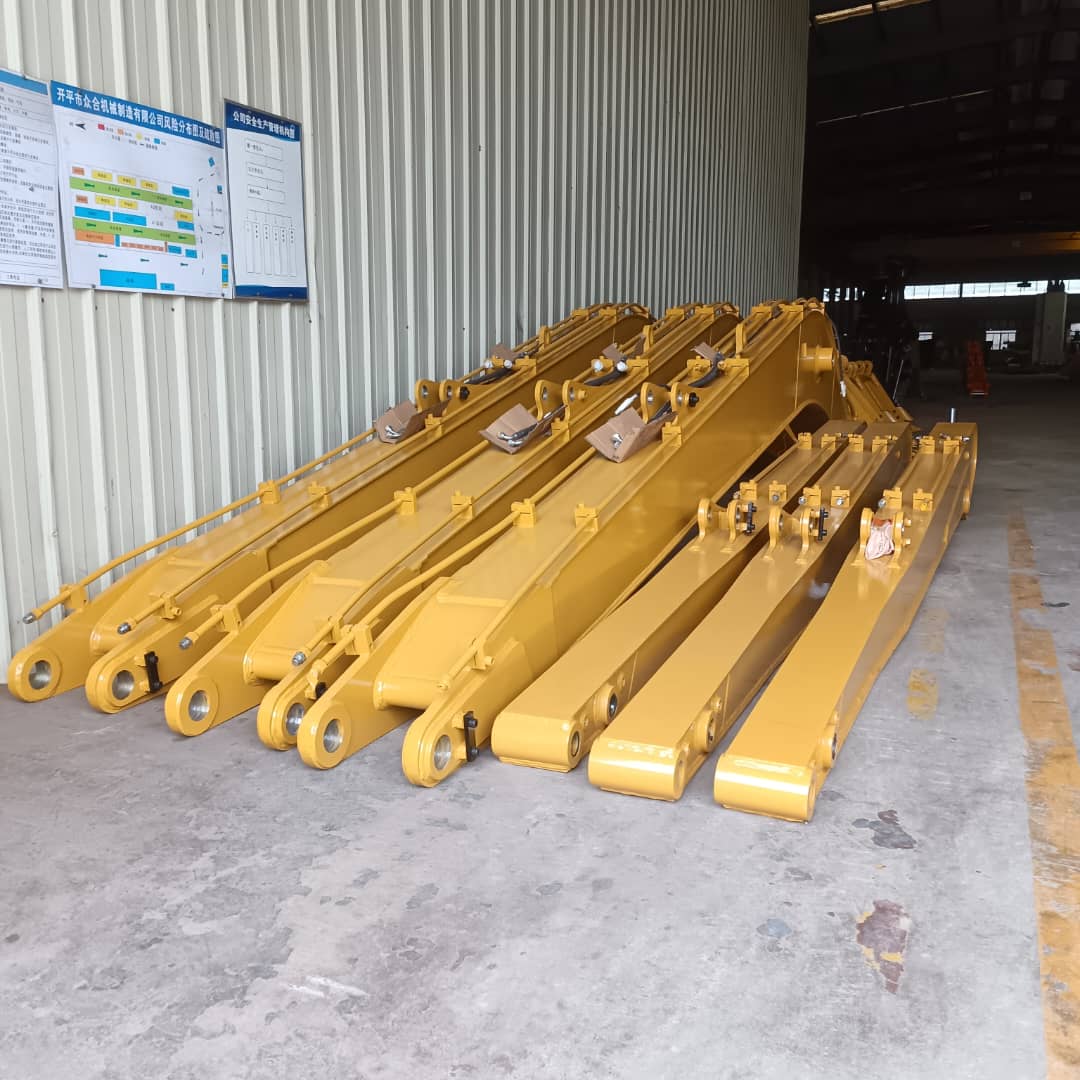

Located in Cuishanhu New District, Kaiping City, Jiangmen City, Guangdong Province, China, we has more than 14000㎡ steel structure standardization workshop with a large number of high precision processing equipment as well as a strong and cohesive team. At present, there are more that 60 experienced technical staffs, 30 welding workers with over 7 years experience, 15 senior designers and a high-tech R&D team.

Double-sided boring machine: Double-sided boring machine, improves accuracy and consistency: It is mainly responsible for the post-welding boring of the boom arm and bucket to ensure the accuracy of the arm. Since the boring pin operations on both sides of the double-sided boring machine are carried out simultaneously, the processing accuracy and consistency of both sides can be guaranteed.

Our annual output of various types of excavator boom arms can reach 600 sets. We supply products at customer's model with high quality, moderate price, quick response and appropriate warranty.

We adhere" Merit Quality, Sincerity Management and Customer Satisfaction", honestly greet customers from home and abroad to negotiate and cooperate with us.

Welcome inquiry!
