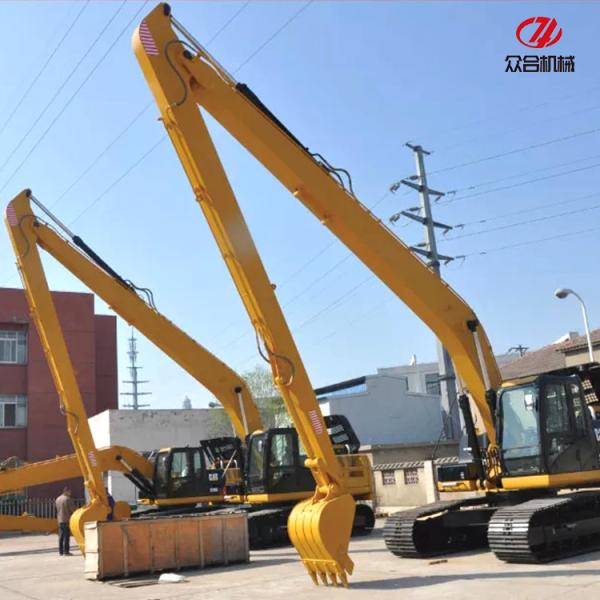

18 Meters 26-28T Long Reach Excavator Booms For Hyundai Kobelco
Working surroundings
Municipal Engineering, railway construction, river sand dredging,
river cleaning and other water conservancy projects.
Product advantages
1. plasma cutting, machine milling, robot welding, boring after
welding, assembly line production operation, and better quality
assurance.
2. It can be customized according to the working conditions to meet
the construction needs of different users.
3. The opening angle of the large and small arms can reach 163
degrees, and the excavation radius and height are larger.
Materials
The main material of boom and arm is Shaogang q355b, the Hydraulic
tubes are national standard precision seamless, the pins are
40MuCr, the high-pressure hoses are 4 layers of steel rings, the
grease pipe is a single-layer hose, and the bushing driven into the
base of the boom is graphite alloy copper sleeve.
Advantages:
| ✅ | 42MuCr for pins |
| ✅ | Q355B for arm box |
| ✅ | Pin holes are boring after welding |
| ✅ | The ear seat is built with reinforced vertical bar plates |
| ✅ | Q355B for ear seat |
| ✅ | The middle sleeve of the boom adopts an integral forming process |
| ✅ | Flexible steel sleeve, convenient for maintenance and replacement |
| Excavator Ton | Total Length(mm) | (A)Boom(mm) | (B)Arm(mm) | Maximum Digging Radius(mm) | Maximum Digging Depth(mm) | Maximum Unloading Height(mm) | Maximum Digging Height(mm) |
| 11-15T | 13000 | 7250 | 5750 | 11200 | 9000 | 7550 | 9350 |
| 20-25T | 15400 | 8220 | 7180 | 14500 | 11300 | 10400 | 12600 |
| 20-30T | 18000 | 10000 | 8000 | 17300 | 13000 | 17200 | 14000 |
| 35-40T | 20000 | 11000 | 9000 | 19200 | 14900 | 12900 | 15200 |
| 40-45T | 22000 | 12000 | 10000 | 21300 | 16000 | 14000 | 17000 |
| 40-50T | 24000 | 13000 | 11000 | 23000 | 17900 | 15200 | 18100 |
Our Long Reach Booms Sticks fit most market models, Include but not
limit:
Komatsu Excavator Model: PC160LC-8, PC200, PC210, PC228, PC220
PC270, PC300, PC350, PC450, PC600, PC850, PC1250
Caterpillar Excavator Model: CAT320, CAT323, CAT326, CAT329,
CAT330, CAT335, CAT336, CAT349, CAT352, CAT374, CAT390
Hitachi Excavator Model: ZX210, EX200, EX220, EX330, EX350, ZX200,
ZX240, ZX330, EX350, EX400, ZX470, ZX670, ZX870, EX1200, EX1900
Volvo Excavator Model: EC220, EC235, EC250, EC300, EC350, EC355,
EC380, EC480, EC750
Doosan Excavator Model: DX225, DX235, DX255, DX300, DX350, DX420,
DX490, DX530, DX800
Kobelco Excavator Model: SK200, SK210, SK220, SK250, SK260, SK300,
SK330, SK350, SK380, SK460, SK500, SK850
Sumitomo Excavator Model:?SH210, SH225, SH240, SH300, SH330, SH350,
SH460, SH480, SH500, SH700, SH800
Hyundai Excavator Model: R200, R210, R220, R290, HX220, HX235,
HX260, HX300, HX330, HX380, HX430, HX480, HX520, R1200
CUSTOMIZATION:
1. Applicable for all brand excavator.
2. Color, length, material can do according to you.
3. Extra pipeline can be added to suit to some extra application.
4. Boom cylinder and stick cylinder can also be supplied if
customer want.
STRONG PRODUCTION CAPACITY:
We can produce 50 sets excavator booms per month.
Our annual output of various types of excavator boom arms can reach
600 sets.
GOOD SERVICE:
1. Online support within 24 hours.
2. Appointment video technical support.
(Our engineers have focused on excavator boom and attachment over
10 years)
3. Long excavator boom shall be two/three jointed pcs to make it
fittable into container to save shipping cost.
WARRANTY
1 year for long reach boom, 180 days for cylinder and linkage, 90
days for bucket.
Usually use 40GP container to load product !
Contact sophia to inquiry details !
