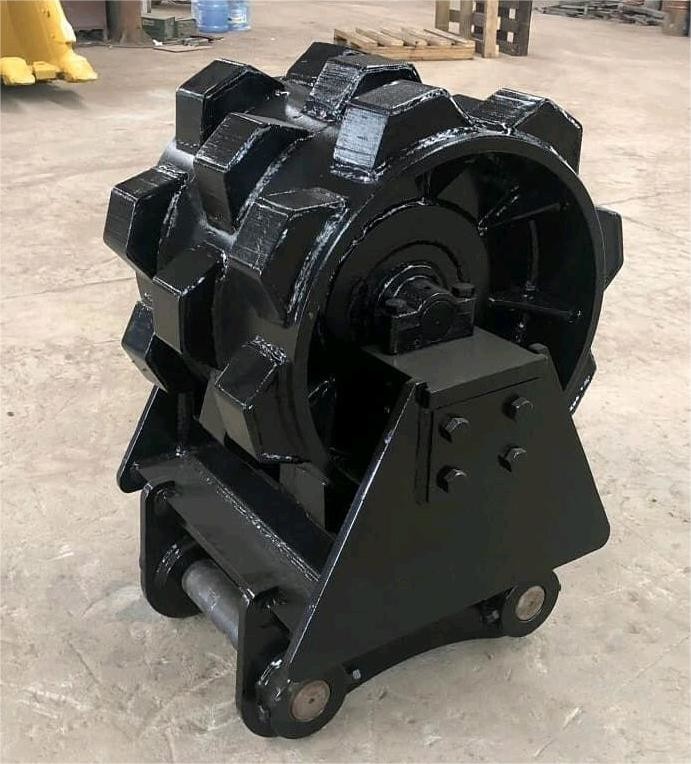

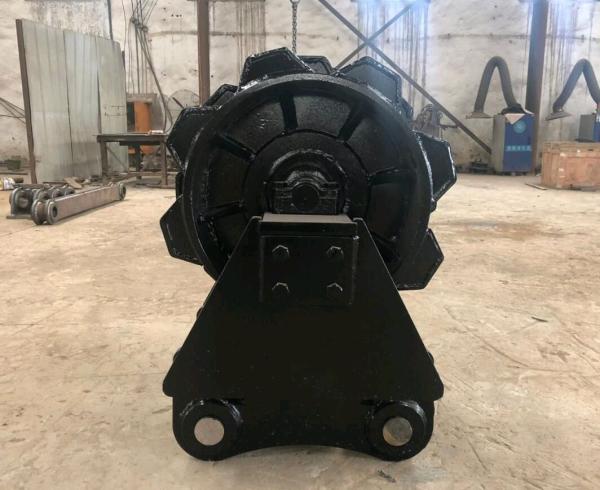

Dirt Compaction Wheel Trench Compactor Wheel for excavator

2024 Zhonghe Machinery Catalogue 3M.pdf

Features of Compaction Wheel

The compaction wheel is a specialized construction attachment used in various earthmoving and compacting applications. It is designed to enhance soil compaction efficiency and improve the stability and load-bearing capacity of the ground. This framework will outline the key components, working principles, and applications of a compaction wheel.

I. Components of a Compaction Wheel
A. Axle: The central shaft that connects the compaction wheel to the host machine.
B. Frame: The structural framework that supports the compaction wheel and distributes the compaction forces.
C. Paddles or Rollers: These are the cylindrical components that make contact with the ground and exert pressure to compact the soil.
D. Bearings: Enable smooth rotation of the compaction wheel.
E. Hydraulic Motors: Provide power to rotate the compaction wheel.

II. Working Principles
A. Attachment and Connection: The compaction wheel is connected to the host machine via the axle and hydraulic connections.
B. Ground Contact: The paddles or rollers make contact with the ground surface.
C. Rotational Movement: The hydraulic motors drive the rotation of the compaction wheel, causing the paddles or rollers to roll along the ground.
D. Compaction Forces: As the compaction wheel rolls, it exerts downward pressure on the soil, compacting it.
E. Traveling and Overlapping: The host machine moves forward, allowing the compaction wheel to cover a larger area. Overlapping passes ensure uniform compaction.
F. Adjustability: Some compaction wheels offer adjustable features, such as variable paddle or roller spacing, to accommodate different soil types and compaction requirements.

More excavator bucket as below:

These are our top-rated products. Such as excavator rock bucket, trapezoid bucket, cleaning bucket, tilting bucket, clamshell bucket, skeleton bucket.

We take part in Changsha Construction Machinery Exhibition

Certification of Rock bucket

Esteblished in 2018, Kaiping Zhonghe Machinery Manufacturing Co., Ltd.，manufacturing and trading combo, specializes in customizing different kinds of excavator boom arm and attachments,Our main product as below:

-Excavator Long Boom
-Excavator Telescopic Arm
-Excavator Sliding arm
-Pile Driving Arm
-High Reach Demolition
-Excavator Tunnel Arm
-Heavy Duty Rock Arm
-Excavator Tilt Bucket
-Excavator Hydraulic Grapple

, which is sell well in more than 40 countries and areas.

Located in Cuishanhu New District, Kaiping City, Jiangmen City, Guangdong Province, China, we has more than 14000㎡ steel structure standardization workshop with a large number of high precision processing equipment as well as a strong and cohesive team. At present, there are more that 60 experienced technical staffs, 30 welding workers with over 7 years experience, 15 senior designers and a high-tech R&D team.

Double-sided boring machine: Double-sided boring machine, improves accuracy and consistency: It is mainly responsible for the post-welding boring of the boom arm and bucket to ensure the accuracy of the arm. Since the boring pin operations on both sides of the double-sided boring machine are carried out simultaneously, the processing accuracy and consistency of both sides can be guaranteed.

Our annual output of various types of excavator boom arms can reach 600 sets. We supply products at customer's model with high quality, moderate price, quick response and appropriate warranty.

We adhere" Merit Quality, Sincerity Management and Customer Satisfaction", honestly greet customers from home and abroad to negotiate and cooperate with us.

Welcome inquiry!

Contact Sales Manager Sophia!

Wechat： 18127591702
whatsapp: +86 18127591702
Email：sophia@excavatorboomarm.com
